ES04 Endoscope Borescope Camera with Light, 4.3" IPS 1920P HD Inspection Camera, 7.9mm IP67 Waterproof

ES04 Endoscope Borescope Camera with Light, 4.3" IPS 1920P HD Inspection Camera, 7.9mm IP67 Waterproof

Light Source Type: 8 LEDs

Model Name: ES04

Material: Plastic

Color: Black

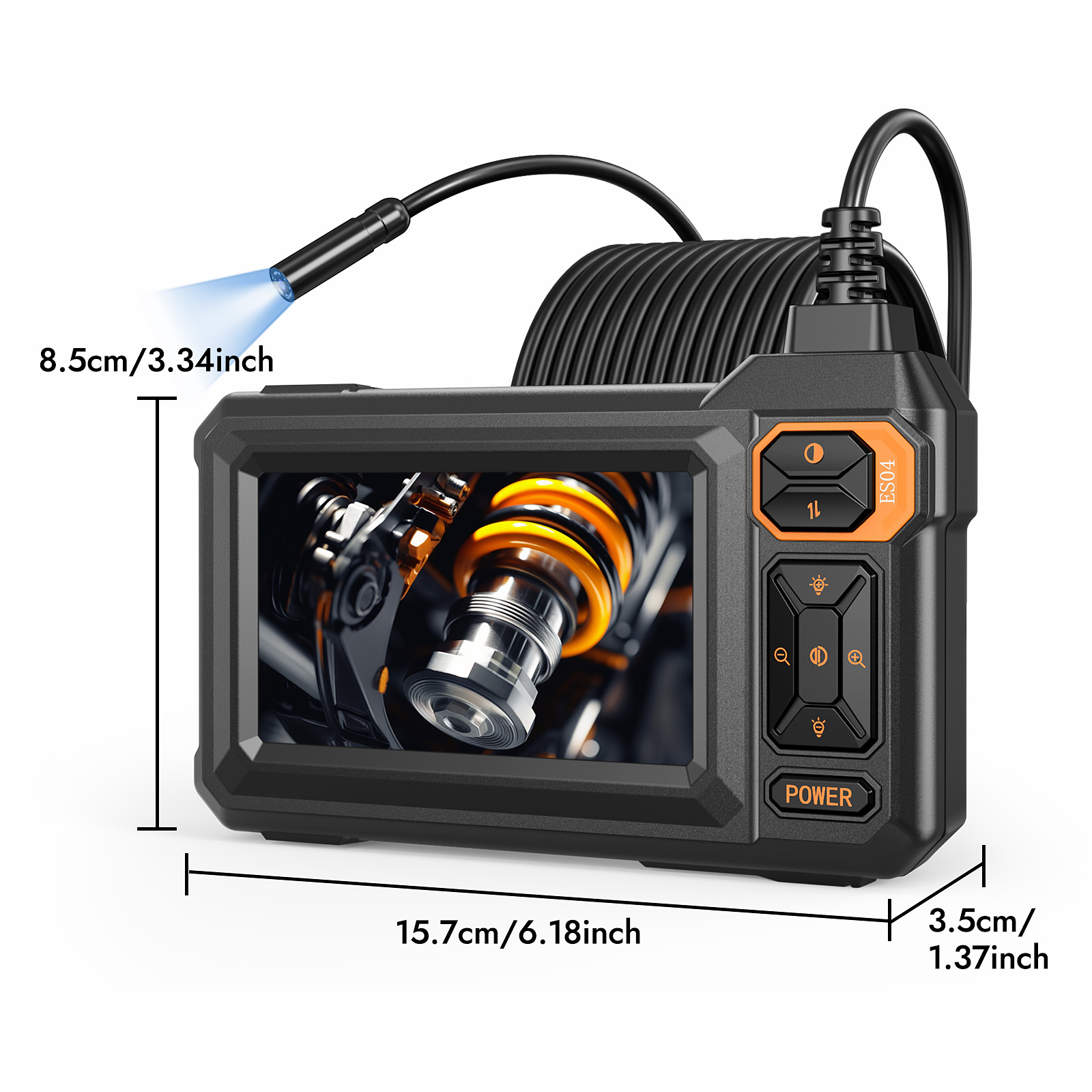

Product Dimensions: 6.18"L x 1.37"W x 3.34"H

Waterproof rating: IP67(probe) Item Weight: 1.12 Pounds

Voltage: 3.7 Volts

Introduction

Item	Parameters
Product name	ES04
Screen	4.3 inches
CMOS size	1/6.5inch
Illuminant	8 LED lights (brightness adjustable)
Waterproof rating	IP67
Supported language	2 languages(English, Simplified Chinese)
Interface and Signal Transmission Mode	Type-C
Operating temperature	-10°C-+55°C
Operating humidity	30%~85%RH
Working current	460mA
Power dissipation	1.9W

Description:

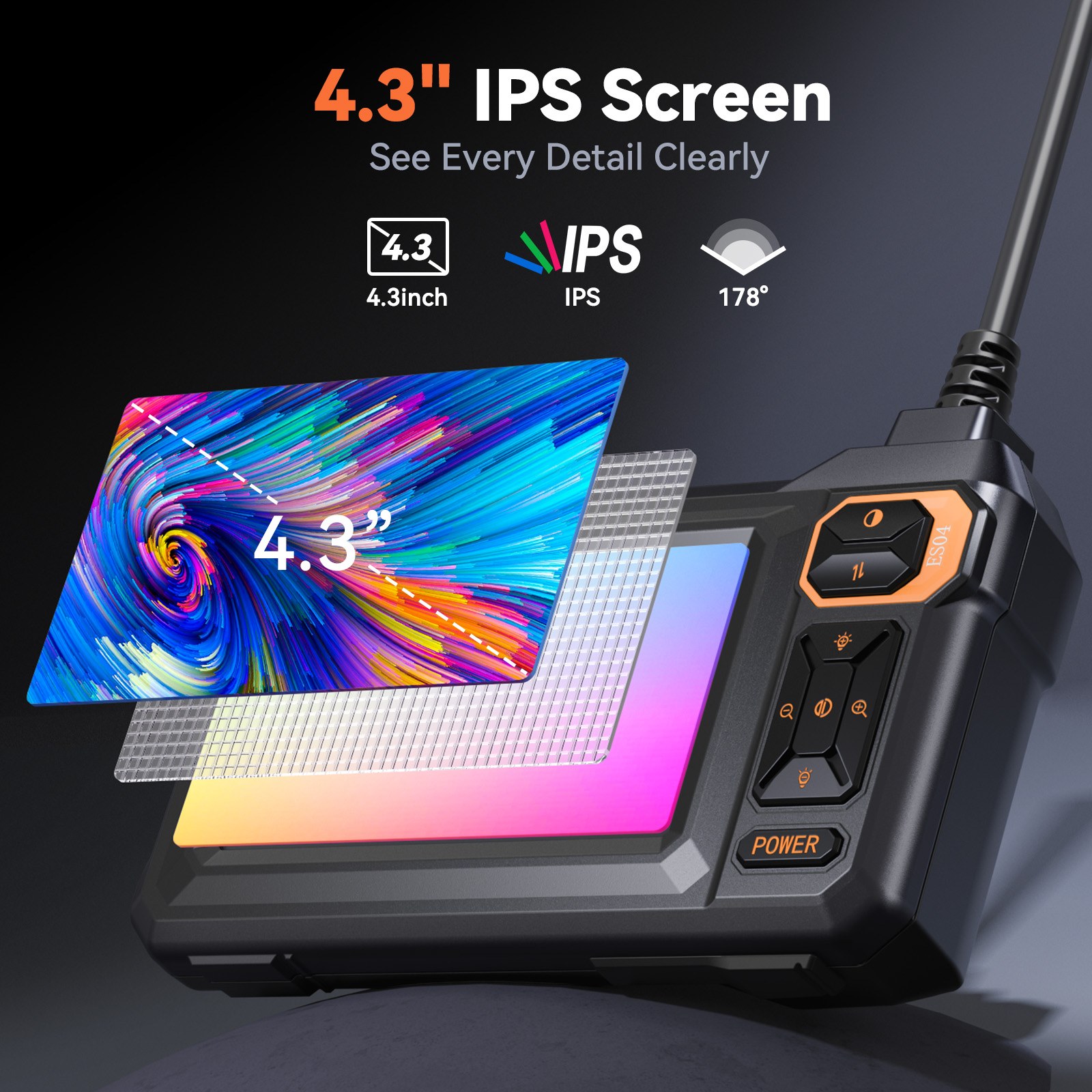

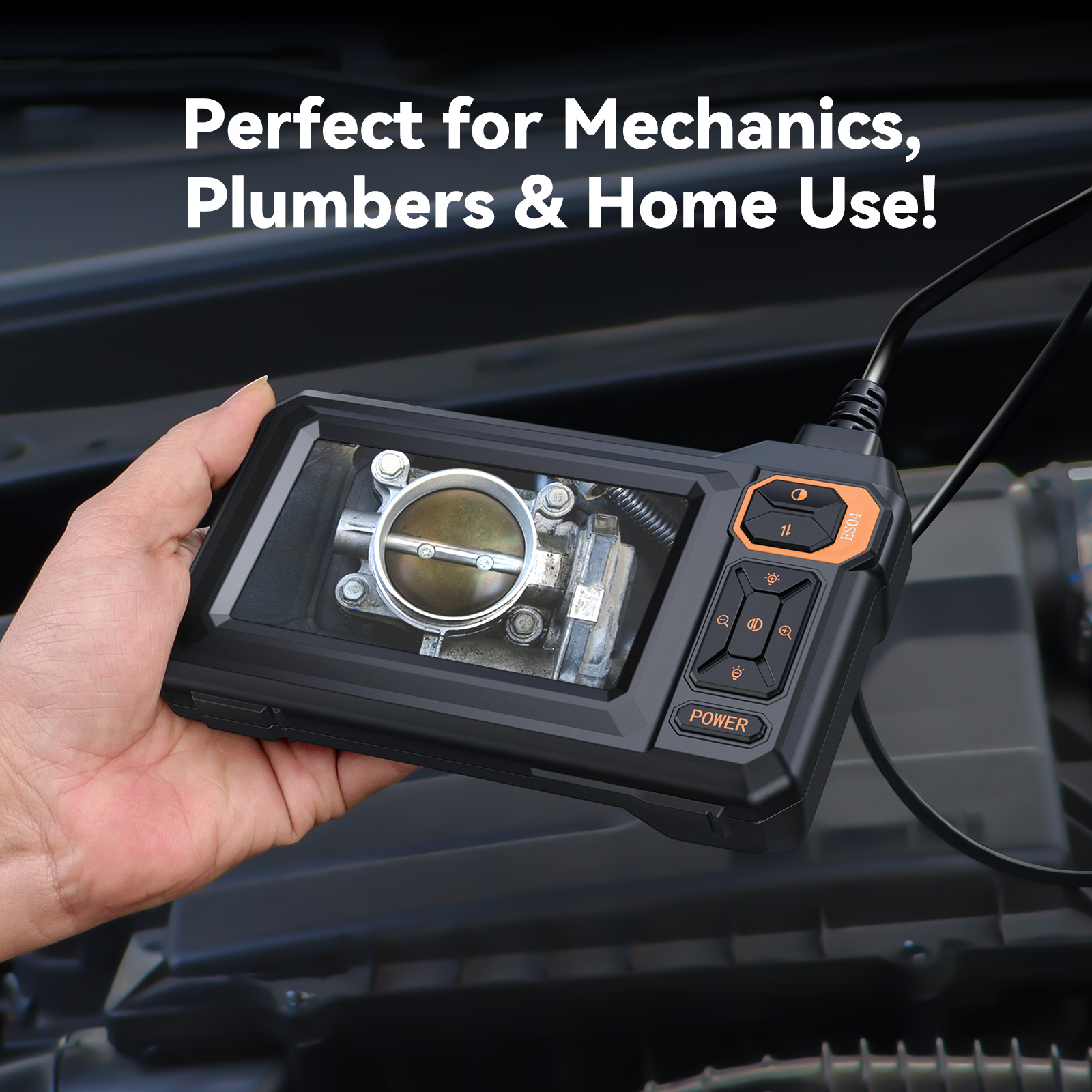

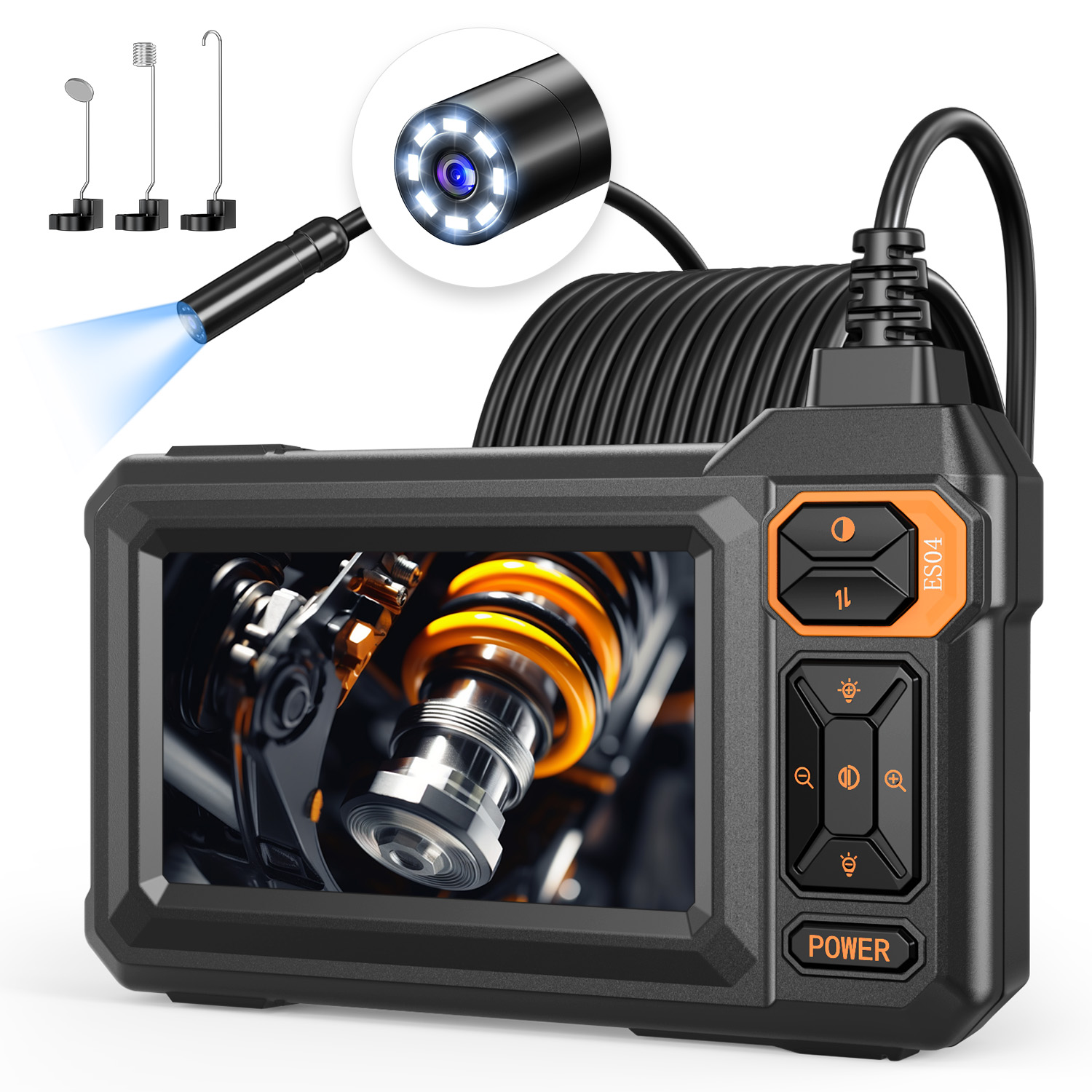

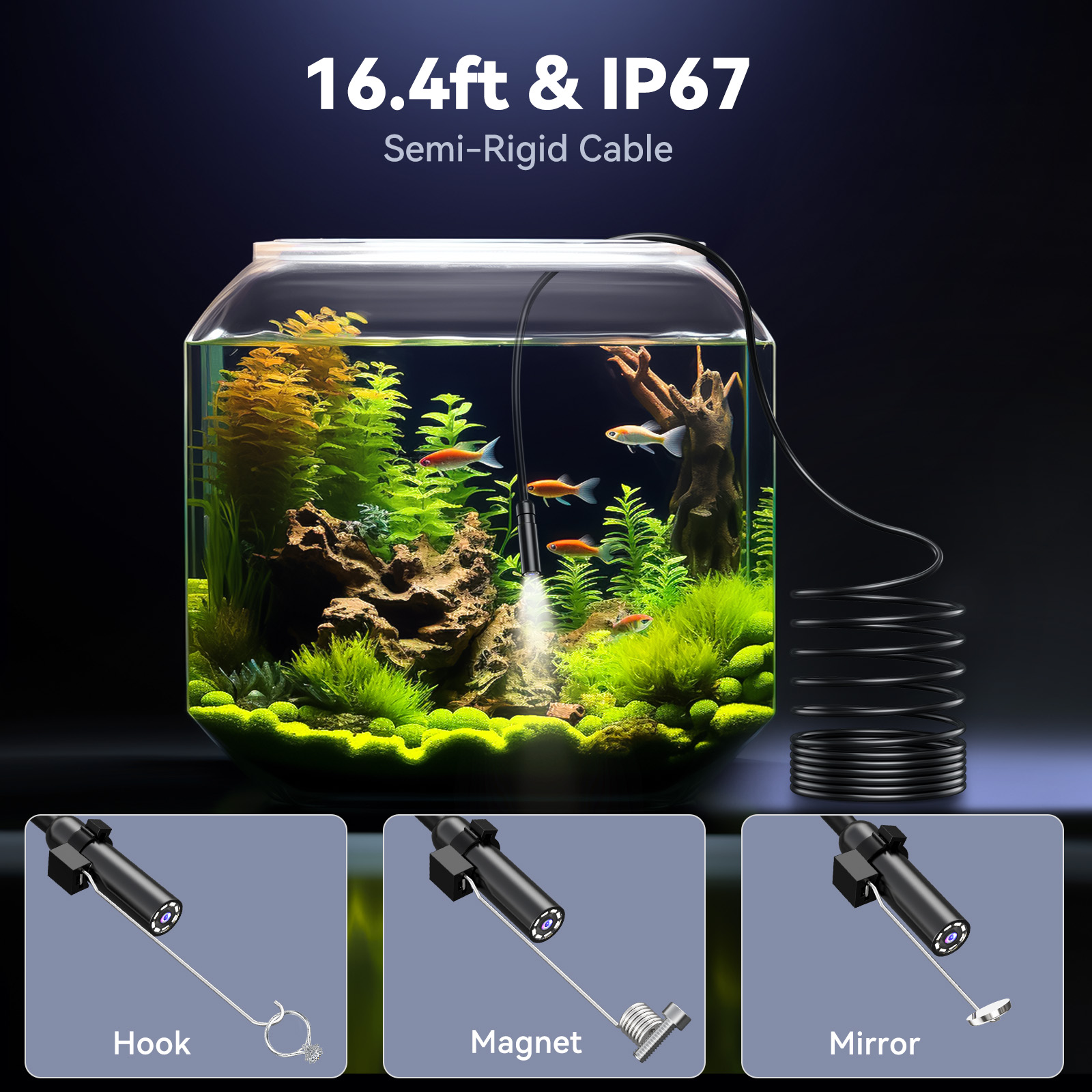

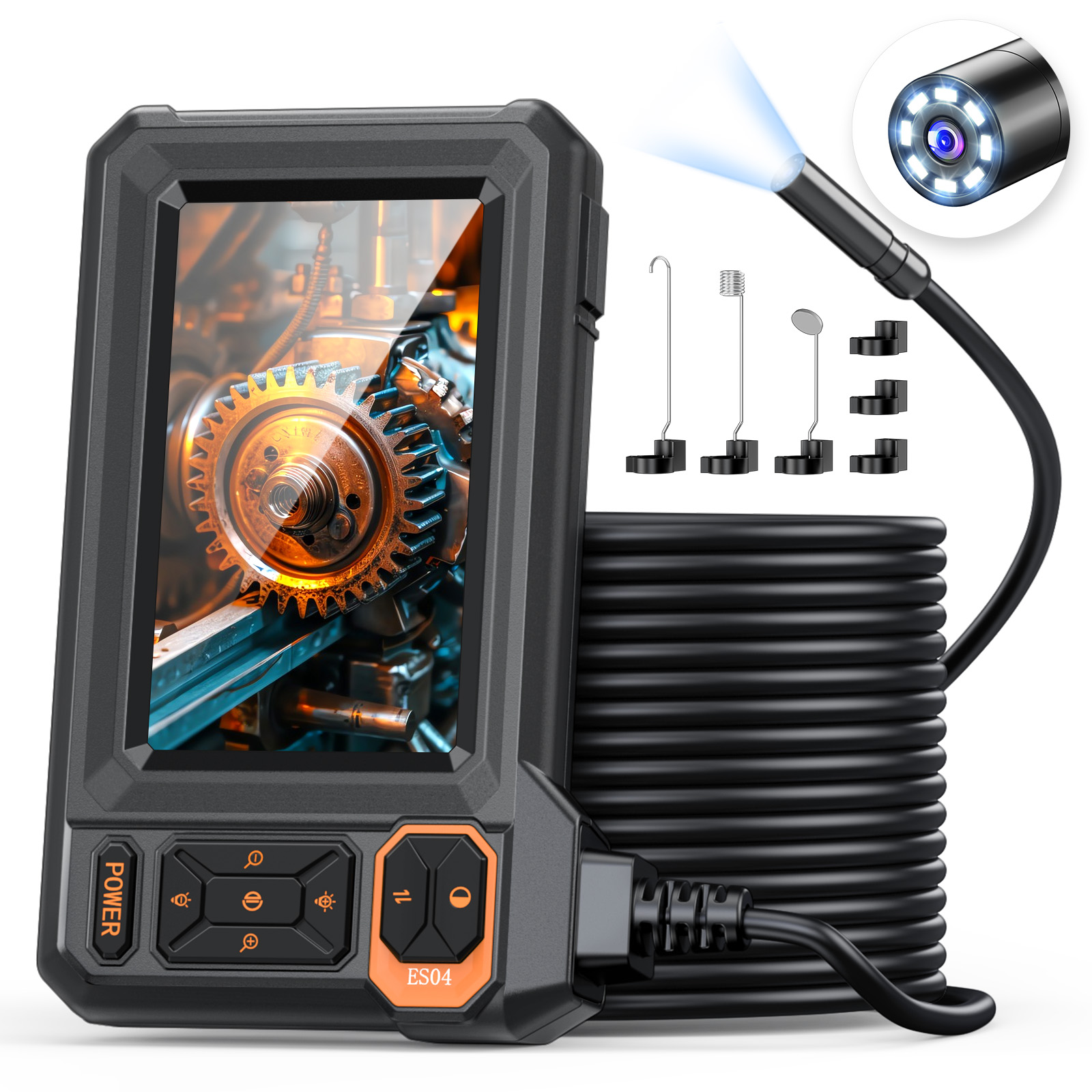

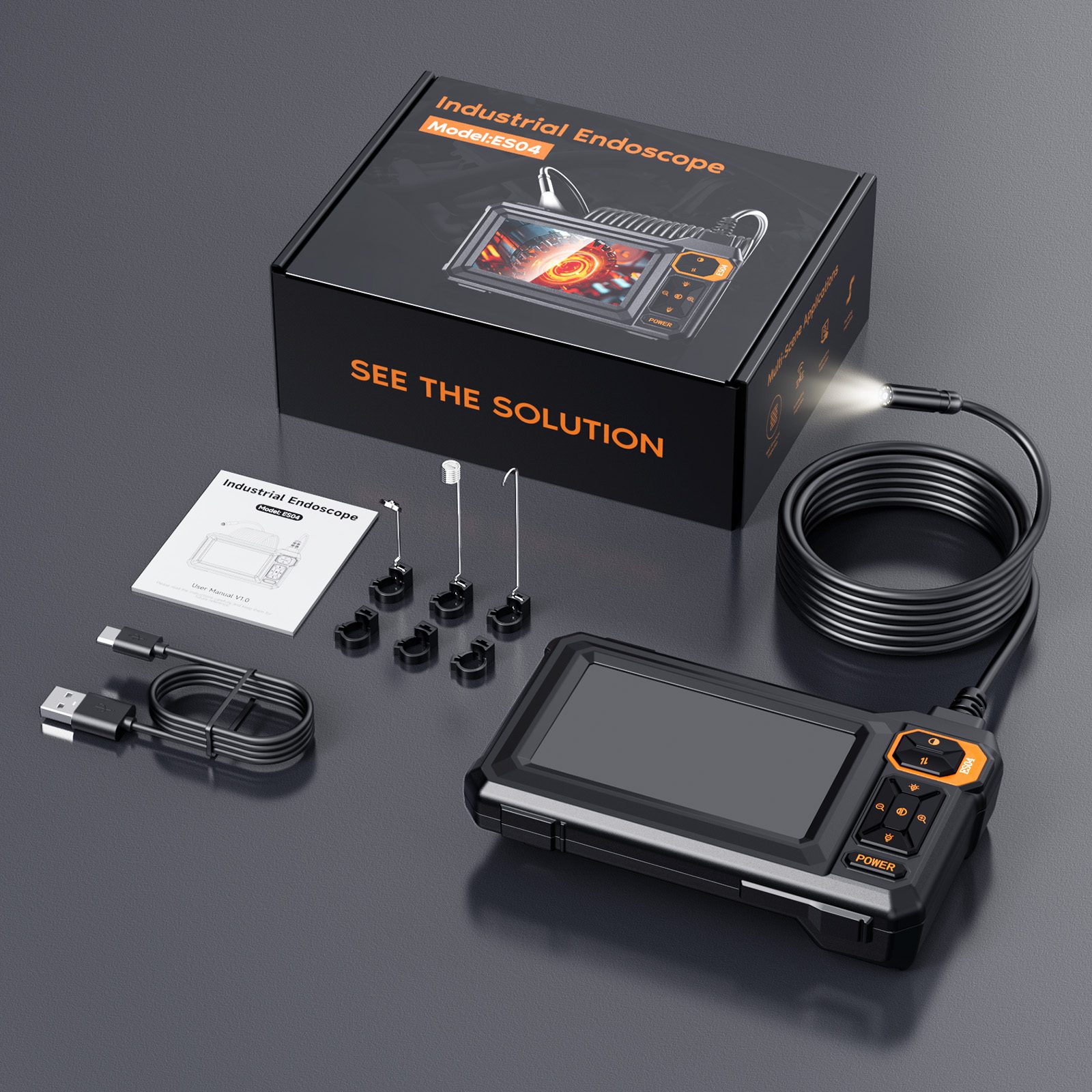

This 4.3-inch endoscope camera is designed for immediate, hassle-free inspection right out of the box. It features a 4.3-inch IPS HD display with a 170° wide viewing angle, delivering vivid, saturated images with color flip and contrast adjustment capabilities. Crucially, it requires no WiFi, apps, or smartphone pairing; you simply power it on to begin. The endoscope is equipped with 8 adjustable LED lights and an ultra-thin 0.31-inch diameter, IP67 waterproof probe, making it ideal for dark, narrow, damp, or harsh environments. For optimal clarity, the probe's focal range is best at 1.2-3.9 inches. Its 16.4-foot semi-rigid cable is both flexible and shape-holdable, allowing access to confined spaces for tasks like automotive repair, pipe inspection, or HVAC checks. Designed for ease of use, it has an ergonomic, non-slip handle for one-handed operation and a rechargeable battery providing 3-4 hours of continuous use. Please note, it does not support photo or video capture. The package includes the camera, essential accessories (hook, magnet, side mirror), a Type-C cable, and a user manual, backed by a 24-month warranty and friendly after-sales service. It's also marketed as the perfect gift for any DIY enthusiast or handyman.

Applications:

Circuit board repair

Coin and stamp collecting

Skin inspection

STEM education

Specifications:

Item	Parameters
Product name	ES04
Screen	4.3 inches
CMOS size	1/6.5inch
Illuminant	8 LED lights (brightness adjustable)
Waterproof rating	IP67
Supported language	2 languages(English, Simplified Chinese)
Interface and Signal Transmission Mode	Type-C
Operating temperature	-10°C-+55°C
Operating humidity	30%~85%RH
Working current	460mA
Power dissipation	1.9W

Competitive Advantage:

As a source factory, our core competitive advantages are rooted in our integrated manufacturing capabilities. We exercise strict quality control over the entire production process, from sourcing raw materials to final assembly, ensuring high product consistency and reliability. Our direct-to-customer model eliminates intermediary markups, allowing us to offer superior products at highly competitive prices. Furthermore, we maintain strong R&D and customization capabilities, enabling us to adapt quickly to market trends and provide OEM/ODM services to meet specific client requirements. This combination of quality, cost-effectiveness, and flexibility provides our partners with a distinct market edge.
